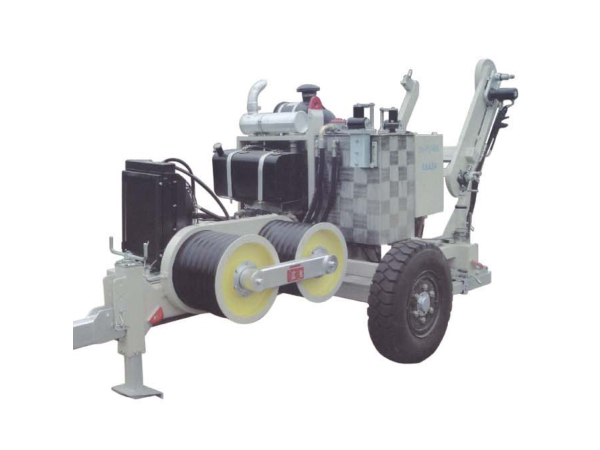

Hydraulic Tractor

Performance and characteristics
■ltem number: 0022
Maximum pull force(kN): 60
Continuous pull force(kN): 50
Maximum speed(km/h): 5
Bull wheel bottom of groove diameter(mm):Φ460
Bull wheel grooves number: 7
Maximum suitable steel rope diameter(mm):Φ18
Maximum through connector diameter(mm):Φ60
Engine power/speed (kW/rpm): 77/2800
Dimensions(mm): 3800 x 2100x 2300
Weight(kg): 3000
■Uses: It adequate to tension releasing various conducts and earthwires. and also useful for tension releasing OPGW optic cable
compounded earthwire and ADSS selfstand optic cable.etc.
■Feature:
1.Infnitely variable speed and line control,thepull in the rope can be read on the line pull gauge。
2.The maxpull for conductor stringing operation can preset ,automatic overloadprotection system .
3.Spring applied hydraulic release brake acts automatically in case of hydraulicfailure ensure to safety .
4.Attached reel winder with automatically level wind ,load and unload conveniently.
Main component:
1. Engine: Cummins(DONGFENG ) water cooled diesel engine.
2.Mainvariable pump and main motor :Rexroth (BOSCH)
3.Reducer:RR (Italian)
4.Mainhy draulic valve : Rexroth (BOSCH)
5.Matched reel:GSP1400
