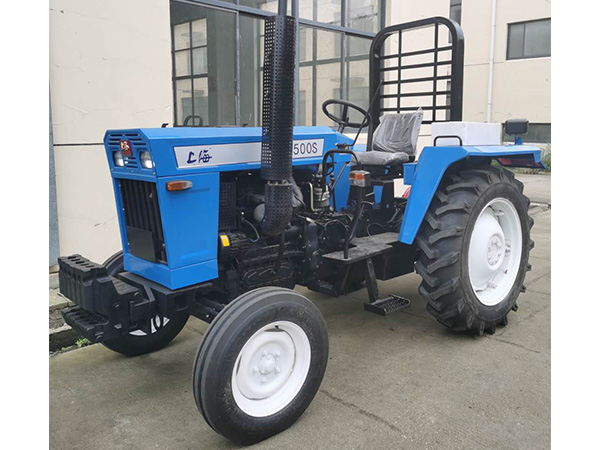

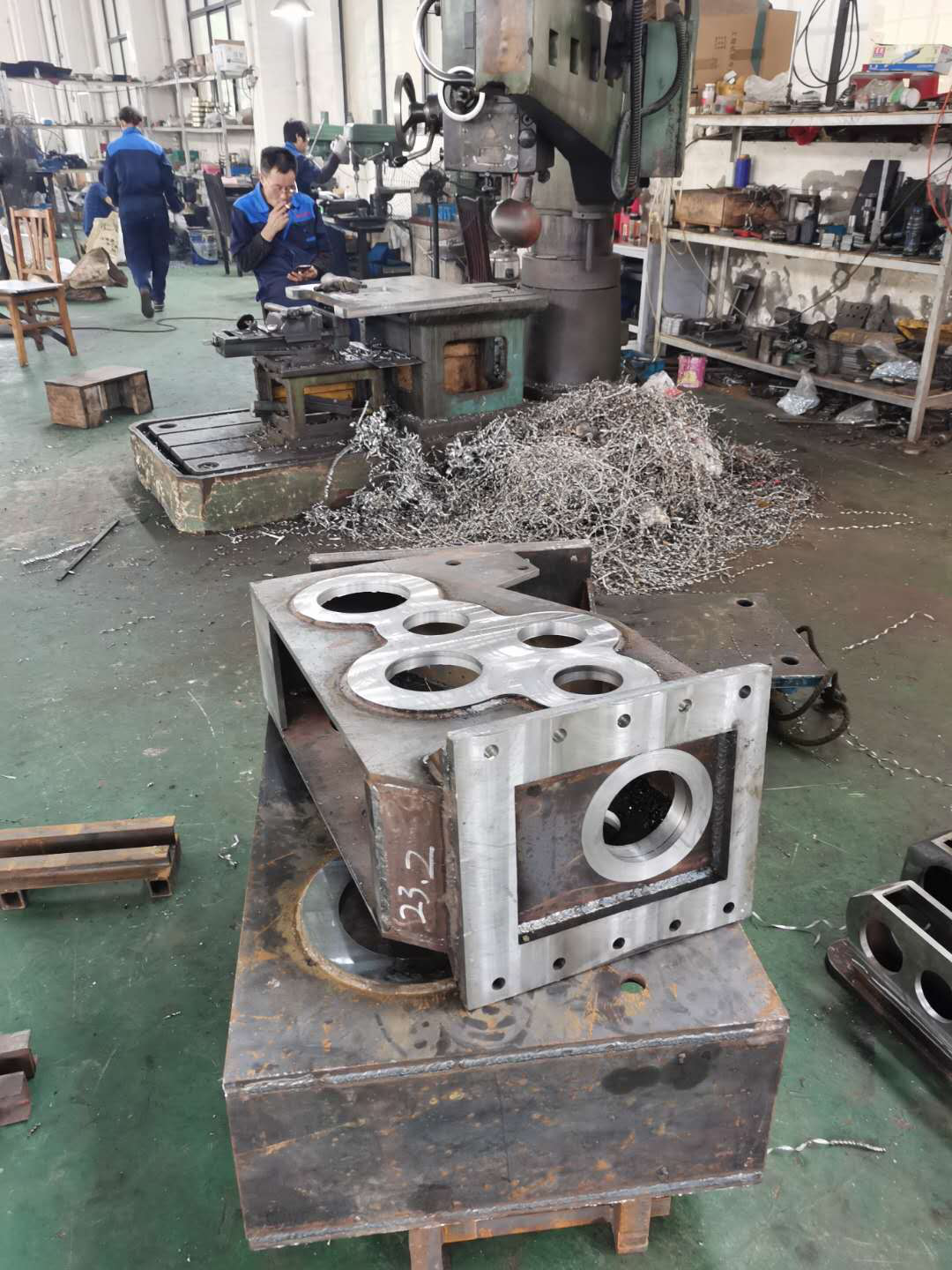

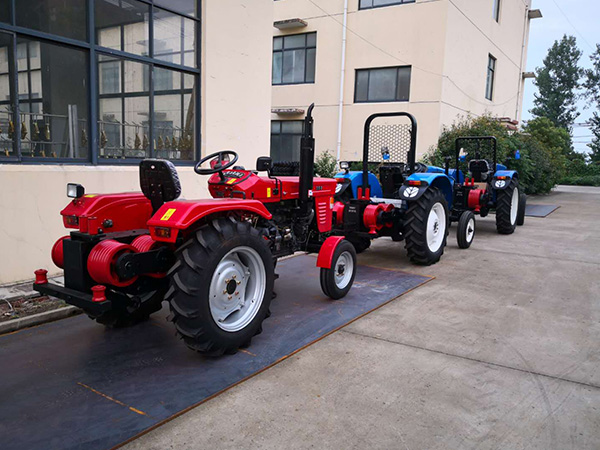

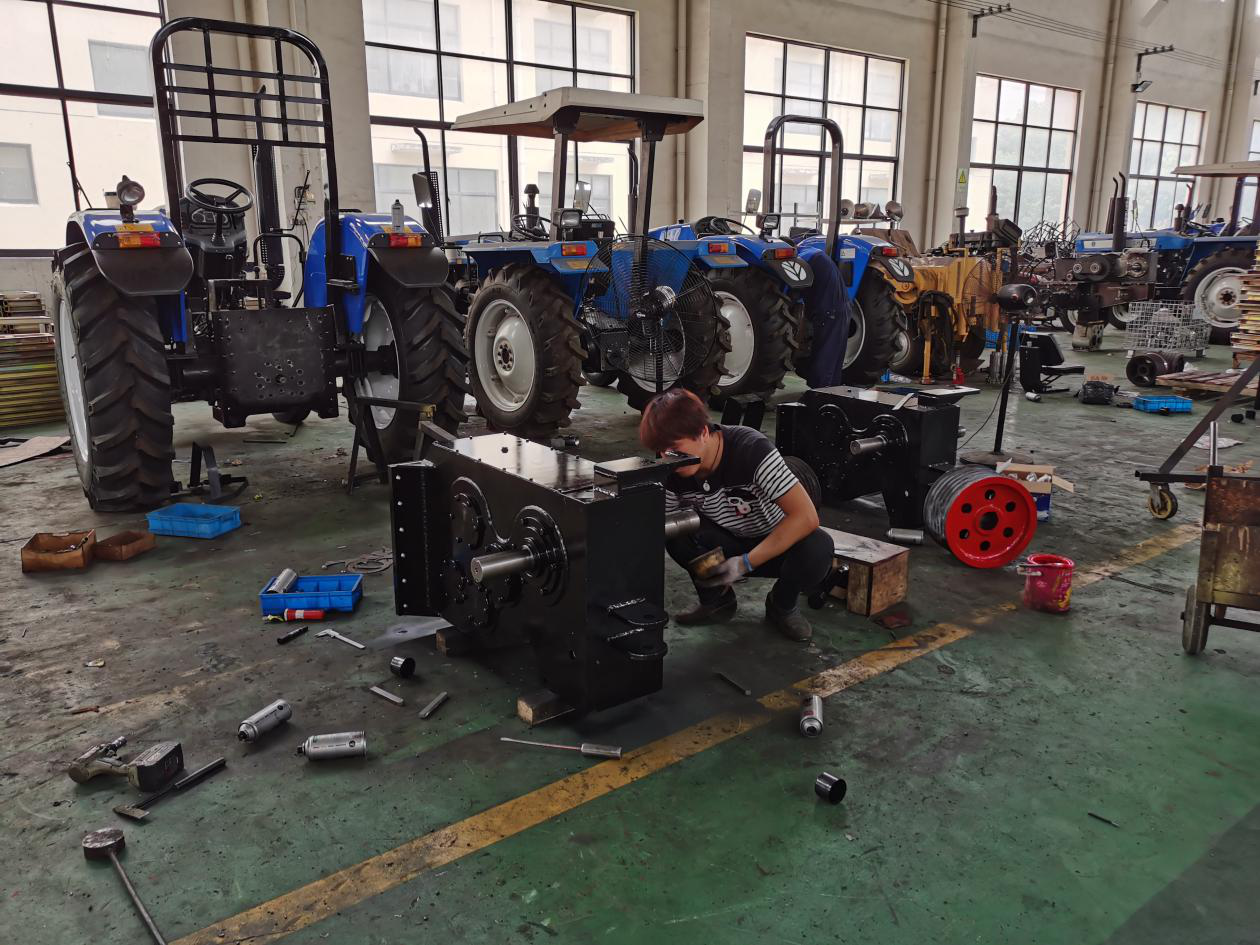

The TGC-50 tractor engineering vehicle developed by our company is suitable for pole setting, traction hoisting, transportation and other operations in the construction of power transmission lines. The engineering vehicle is reformed from Shanghai brand SH-500S tractor. This tractor meets the national three standards. , Can be on the card.
Before using the construction vehicle, the user must read the tractor and construction vehicle instruction manuals carefully, and shall not operate in violation of regulations and overload use.
Operation method:
一、Walking operation method：
(1) Start the diesel engine, put the diesel engine in idling state, press the clutch, enter the low-speed gear, and then put the clutch in semi-linkage, pull the right joystick, pull it back to the "walking" position, so that the walking gear meshes In place.
(2) Move the left handle backward to the "same" position.
(3) Loosen the clutch to move and shift gears.
二、Towing operation method：
(1) Pull the right handle of the tractor forward to the position of "Wringing".
(2) Move the left handle forward to the "straight" position, so that the winch gearbox is connected to the power.
(3) Change the gear lever and select the speed.
(4) Pull the ground cable forward on the pull ring on both sides of the tractor's front axle and the shackle on the lower side of the rear axle box connecting plate to fix the tractor.

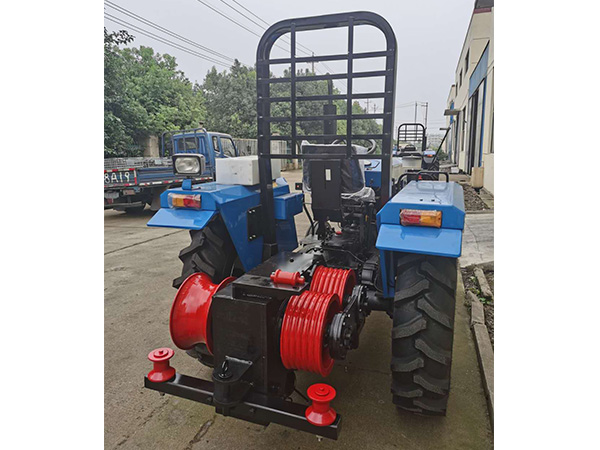

(5) Wind the traction steel rope from the tractor gearbox into the single or double drum. The number of windings is 5-6. Finally, the steel rope is drawn from the bottom, and the tail rope is pulled back by a person according to the traction force. The steel rope winding drum must be "top in and bottom out".
(6) Start the tractor in an idling state, and use the tractor speed control handle to carry out the traction speed adjustment and reverse gear operation, and then the traction operation can be carried out.
(7) During construction, when braking and grinding the core, just step on the "clutch" with your foot.
(8) When the steel rope enters the engineering vehicle, it must be "back in and out" from behind the tractor.
(9) Double-drum traction machine, the steel rope can not only be wound on one drum, it needs two drums to be used together.
三、technical parameter：
Model number | TGC—50 | |||||||||
Shift gear | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Down 1 | Down 2 |
Rated traction (KN) | 50 | 40 | 40 | 30 | 20 | 20 | 15 | 10 |
|
|
Traction speed (m/min) | 6 | 10 | 14.5 | 19 | 24 | 40 | 58 | 76 | 7 | 25 |
Prime mover | (SH—500S tractor) | |||||||||
Weight (Kg) | 2200 | |||||||||
Four.matters needing attention：
(1) When operating a construction vehicle, it is strictly prohibited to overload it.
(2) The gears should be selected according to the work requirements. The low-speed gears 1-3 should be used when lifting, and the high-speed gears are strictly prohibited.
(3) Engineering vehicles need to be oiled frequently for maintenance, and check whether each part is normal to avoid accidents.
