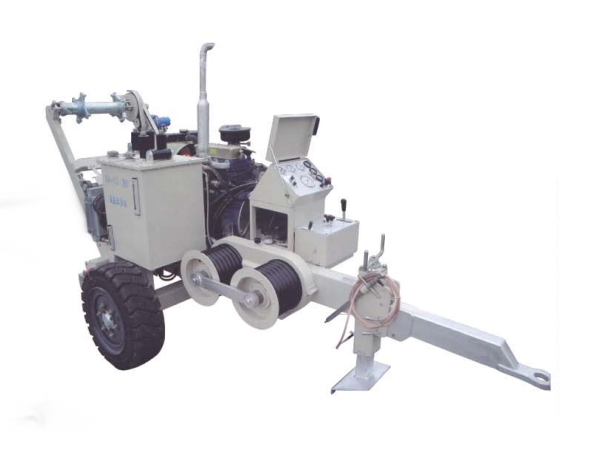

Hydraulic Tractor

Performance and characteristics
■ltem number: 0020
Essential parameter
Maximum pull force(kN): 30
Continuous pull force(kN): 25
Maximum speed(km/h): 5
Bull wheel bottom of groove diameter(mm):Φ300
Bull wheel grooves number: 7
Maximum suitable steel rope diameter(mm):Φ13
Maximum through connector diameter(mm):Φ40
Engine power/speed (kW/rpm): 312200
Dimensions(mm): 3200 x 1600 x 2000
Weight(kg): 1500
Uses: It adequate to tension releasing various conducts and earthwires. and also useful for tension releasing OPGW optic cable compounded
eathwire and ADSS selfstand optic cable.etc.
■Feature:
1.Infinitely variable speed and line control,thepull in the rope can be read on the line pull gauge .
2.The maxpull for conductor stringing operation can preset ,automatic overloadprotection system
3.Spring applied hydraulic release brake acts automatically in case of hydralcfailure ensure to safety
4.Attached reel winder with automatically level wind ,load and unload conveniently.Main component:
1.Chinese famous diesel engine.
2.Mainpump: SAUER DANFOSS
3.Reducer: EUROPAIR(talian)
4.Matched reel: GSP950
